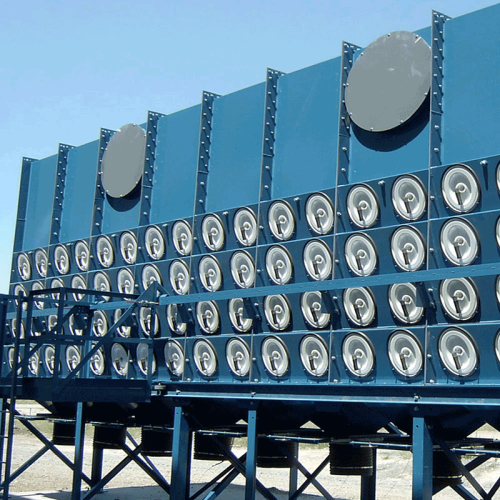

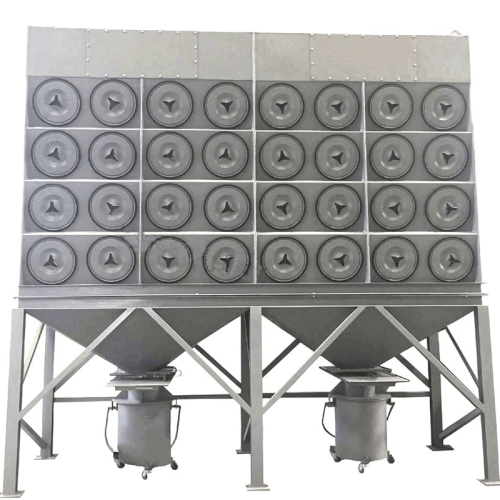

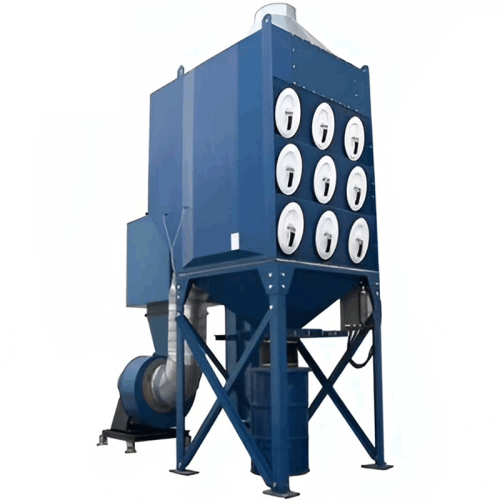

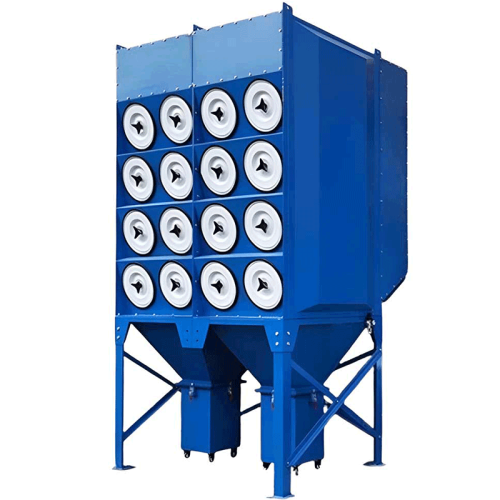

Horizontal Cartridge Filter & Dust Collector
- Model
- Pulse Jet Cartridge Filter
Item specifics
- Material of Shell
- Carbon Steel/304 or 316L Stainless Steel
- Thickness of Shell
- 3mm/4mm/5mm
- Pulse Jet Valves
- SBFEC/ASCO/GOYEN/Nomal
- Discharge Valve
- Rotary Airlock/Gate Valve/Heavy Hammer Flap Valve
- Certification of Motor
- CE/CSA/UL/ATEX
- Control Panel
- Touch Screen/Button/PLC Remote
Review
Description
Introduction
Horizontal cartridge dust collector is an advanced air filtration system designed to efficiently capture fine dust, fumes, and particulate matter in industrial environments. Unlike traditional baghouse systems, it uses pleated filter cartridges arranged horizontally to maximize filtration efficiency and reduce footprint. This type of dust collector is ideal for applications with high dust loads, such as metalworking, welding, powder processing, and woodworking, where space constraints and high-efficiency filtration are critical. Horizontal cartridge dust collector offers a space-saving, high-performance solution for fine dust filtration in industrial environments, ensuring cleaner air quality, reduced maintenance, and efficient operation.
Key Features
>High Filtration Efficiency – Uses pleated filter cartridges that provide a larger surface area for superior dust collection.
>Compact Design – Horizontal cartridge arrangement reduces system height, making it suitable for low-ceiling installations.
>Pulse Jet Cleaning System – Utilizes compressed air pulses to clean filter cartridges, minimizing maintenance and extending filter life.
>Lower Energy Consumption – More efficient than traditional baghouse dust collectors, requiring less airflow resistance.
>Easy Filter Replacement – Cartridge filters can be accessed and replaced from the front or side without requiring extensive disassembly.
>Suitable for Fine & Dry Dust – Ideal for handling welding fumes, pharmaceutical dust, metal dust, and other airborne particulates.
Components of Horizontal Cartridge Dust Collector
1. Filtration System
>Cartridge Filters – Pleated filters that capture dust particles efficiently while providing a larger filtration surface.
>Filter Housing – The enclosed structure that holds and protects the cartridge filters.
>Filter Access Doors – Side or front doors for quick and easy filter maintenance and replacement.
2. Cleaning System
>Pulse Jet System – Uses short bursts of compressed air to dislodge dust from the filters, keeping them clean for longer operation.
>Compressed Air Manifold – A distribution system that delivers compressed air to the pulse jet system.
>Solenoid Valves & Timer Control – Automates the cleaning cycle by controlling when and how often the pulse jets activate.
3. Airflow & Dust Collection System
>Dust Hopper – A container at the bottom of the unit where dust and debris collect after being dislodged from the filters.
>Rotary Airlock Valve – Ensures controlled dust discharge from the hopper while preventing air leakage.
4. Fan & Blower System
>Induced Draft Fan – Generates the airflow required to draw dust-laden air into the system.
Motor & Drive Assembly – Powers the fan for continuous airflow.
>Silencer (Optional) – Reduces noise produced by the fan during operation.
5. Monitoring & Control System
>Differential Pressure Gauge – Monitors airflow resistance across the filters, indicating when filters need cleaning or replacement.
>Control Panel – Manages the fan, pulse jet cleaning system, and alarms for efficient dust collection operation.
