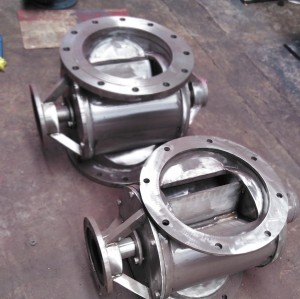

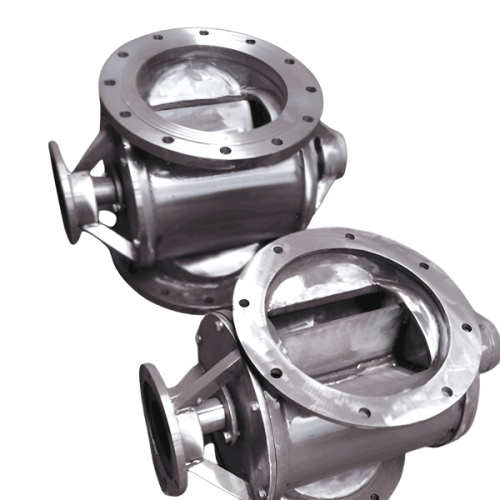

Round Rotary Airlock Valve for Dust Collector
Review
Description
Description

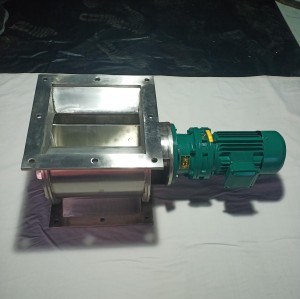

Round rotary airlock valve is an essential component in a dust collector system, designed to control dust discharge while maintaining proper airflow and system efficiency. This valve prevents air leakage by creating a sealed barrier between the hopper and the discharge point, ensuring continuous material flow. The square airlock valve is ideal for handling fine dust, bulk powders, and granules in industrial applications such as woodworking, metalworking, and cement processing. Its durable construction and precision-engineered rotor provide reliable performance, reducing system downtime. A square rotary airlock valve enhances dust collection efficiency by preventing pressure loss and ensuring smooth material handling.
Key Components
>Housing – The main body, typically made of cast iron or stainless steel, providing structural support and durability.
>Rotor – A rotating component with multiple vanes (blades) that controls material discharge while maintaining an airlock seal.
>End Plates – Fixed plates at both ends of the housing, securing the rotor and supporting the bearings.
>Bearings – Support the rotor shaft, ensuring smooth and stable rotation.
>Shaft – Connects the rotor to the drive system, transmitting motion.
>Drive System – Includes an electric motor and gearbox that power the rotor’s rotation.
>Seals – Prevent dust and air leakage around the rotor and shaft, ensuring airtight operation.
>Inlet & Outlet Flanges – Square-shaped openings for dust or material entry and exit, designed for secure connection to the dust collector system.
>Inspection Ports (Optional) – Allow easy maintenance and monitoring of internal components.
