Silo Top Baghouse Dust Collector and Filter
Item specifics
- Material of Shell
- 3mm/4mm Carbon Steel
- Material of Filter Bag
- Polyester Fibre
- Default Pulse Valve
- SBFEC DMF-Z-25
- Certification of Motor
- CE/CSA/UL/ATEX
- Hopper
- NO Need
Review
Description

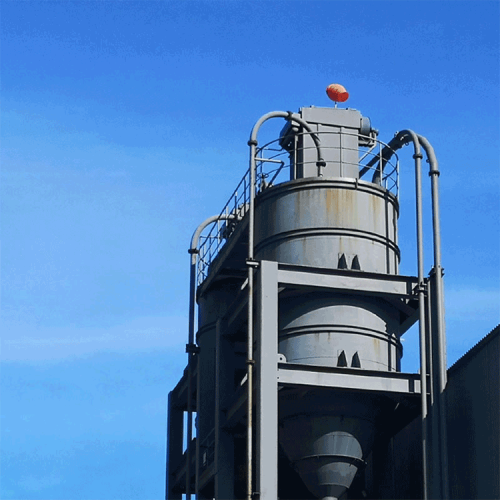

Introduction of Silo Top Dust Collector
Silo top baghouse dust collector is a filtration system designed to capture airborne dust particles released during material loading and storage in silos. Silo venting filter features a series of filter elements, often filter polyester bags, that trap dust while allowing clean air to escape. Equipped with pulse jet valves, it ensures efficient dust removal and prolongs filter life. Commonly used in industries handling cement, grain, and powders, it helps maintain environmental compliance and workplace safety by reducing airborne dust emissions. If used for coal powder silo, explosion-proof measures should be considered.
Key Features of Silo Top Baghouse
>High-Efficiency Filtration – Captures fine dust particles to ensure clean air release.
>Pulse Jet Cleaning System – Automatically cleans filters for continuous operation, usually pulse jet valves.
>Compact Design – Mounted on top of silos, saving space, usually without hopper.
>Durable Construction – Made from 3mm/4mm carbon steel materials for long-lasting performance.
>Easy Maintenance – Tool-free filter replacement for minimal downtime.
>Environmental Compliance – Reduces airborne dust emissions, ensuring workplace safety.
>Versatile Applications – Suitable for cement, grain, and powder handling industries.
Components of Silo Top Baghouse Filter
>Filter Bags – Usually 550gsm polyester fabric filter, with or without anti-static function.
>Pulse Jet Valves –Usually with SBFEC valves, also can choose asco or goyen valves.
>Body– With 3mm/4mm carbon steel, and 4mm/5mm cell plate.
>Hopper and Airlock Valve – Usually fixed on the top of the silo, no need hopper and airlock valve.
>Induced Draft Fan – CE/CSA/UL/ATEX certified motor can be choosed.
>Pressure Differential Gauge – Monitors the airflow through the filters by measuring the difference in air pressure before and after the filters, helping detect filter clogging.
>Control Panel – A device that monitors and controls the operation of the dust collector, including the fan, cleaning system, and alarms for maintenance needs.
Silo Top Dust Collector Catalogue
| Model | Air Volume/m³/hr | Air Volume/CFM | Filter Area/㎡ | Fan Power/kw | Overall Dimension/mm |
| CBD-II-36-100 | 1800 | 1059 | 15 | 2.2 | 1200*1200*1500 |
| CBD-II-36-100 | 3500 | 2059 | 30 | 3 | 1200*1600*1900 |
| CBD-II-36-100 | 5000 | 2941 | 40 | 4 | 1600*1600*2000 |
CBD-II-36-100 | 6000 | 3529 | 50 | 5.5 | 1600*1900*2000 |
