Air Box Pulse Jet(PPC Series) Baghouse Dust Collector
- Model
- Pulse Jet Baghouse
Item specifics
- Material of Shell
- Carbon Steel/304 or 316L Stainless Steel
- Thickness of Shell
- 3mm/4mm/5mm
- Material of Filter Bag
- PE/PP/PPS/PTFE/Fiberglass/Nomex
- Material of Filter Cage
- Carbon Steel/304 or 316L Stainless Steel
- Default Pulse Valve
- SBFEC DMF-Z-65
- Certification of Motor
- CE/CSA/UL/ATEX
- Discharge Valve
- Rotary Airlock/Gate Valve/Heavy Hammer Flap Valve
- Control Panel
- Touch Screen/Button/PLC Remote
Review
Description

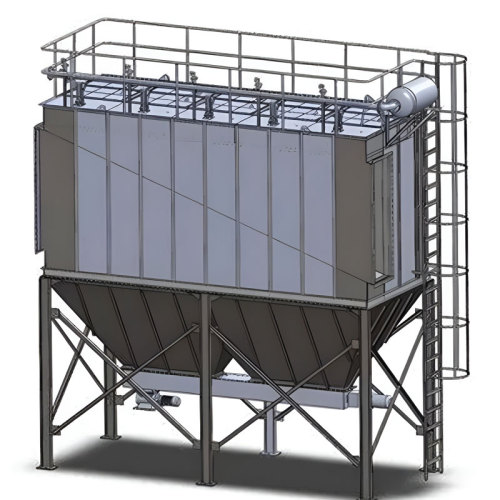

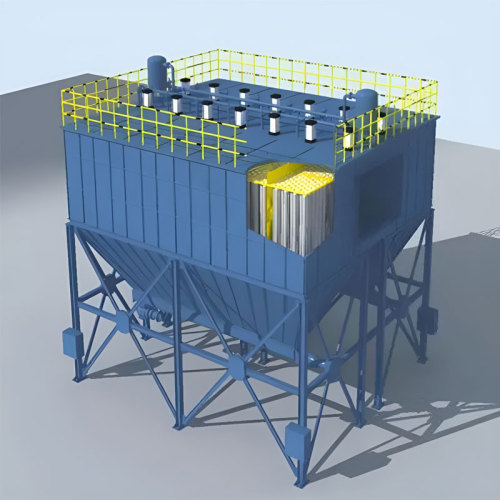

Introduction of Air Box Pulse Jet Baghouse
The air box pulse jet(ppc series) baghouse dust collector is a pulse jet dust collector designed for high-efficiency industrial air filtration. As a baghouse dust collector, it uses fabric filter bags to capture fine dust particles, ensuring clean air release. The pulse jet system automatically cleans the filters in one baghouse with only one or two pulse jet valves, particularly suitable for dust that is easily removed.The air box pulse jet baghouse is ideal for industries like cement, metallurgy, and power plants. Its durable construction and efficient operation make it a reliable solution for dust control in demanding applications.
Key Features of PPC Series Dust Collector
>Air Flow - Compared with small bag dust collectors, it has a larger air volume processing capacity.
>Pulse Jet Cleaning System – Uses compressed air pulses to clean filters efficiently.
>Air Box Design – Ensures uniform airflow distribution for stable performance.
>High Filtration Efficiency – Captures fine dust particles to maintain clean air quality.
>Modular Structure – Allows easy expansion and customization.
>Durable Construction – Built with robust materials for long-lasting use.
>Low Maintenance – Automated cleaning reduces downtime and manual intervention.
>Wide Applications – Suitable for cement, metallurgy, chemical, and other industries.
>Environmental Compliance – Effectively controls dust emissions for a safer workplace.
Components of Air Box Pulse Jet Baghouse

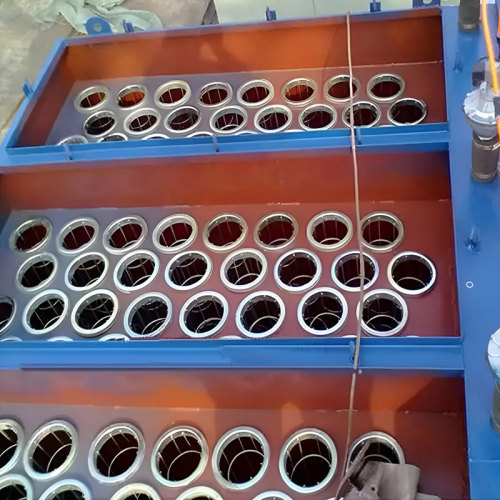

>Filter Bags – PE/PP/PPS/PTFE/Nomex/Fibergalss filter bags can be choosed for different conditions.
>Filter Bags – Carbon steel, 304 or 316L material can be choosed according to the corrosiveness of flue gas.
>Pulse Jet Vlaves – Usually with SBFEC valves, also can choose asco or goyen valves.
>Body – With 3mm/4mm carbon steel/304 or 316L stainless steel, and 4mm/5mm cell plate.
>Hopper and Airlock Valve – Rotary airlock valve, gate valve and heavy hammer flap valve can be choosed.
>Screw Conveyor – Sometimes screw conveyor is need for discharging dust automatically.
>Induced Draft Fan – CE/CSA/UL/ATEX certified motor can be choosed.
>Pressure Differential Gauge – Monitors the airflow through the filters by measuring the difference in air pressure before and after the filters, helping detect filter clogging.
>Control Panel – A device that monitors and controls the operation of the dust collector, including the fan, cleaning system, and alarms for maintenance needs.
